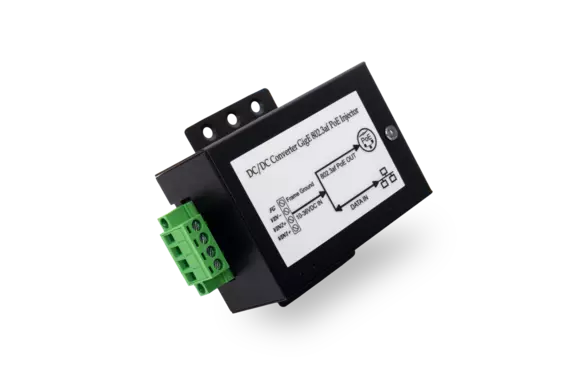

Marine Power Over Ethernet (PoE) Injector for FLIR joystick control units.

$254.99 (USD)

Model: POE

SKU: A80811

Marine Power Over Ethernet Injector

Marine Power Over Ethernet Injector

Marine Power Over Ethernet (PoE) Injector for FLIR joystick control units. The FLIR PoE injector is compatible with both 12- and 24-volt DC systems for maximum flexibility. This device also supports up to 5 Gigabit speed networking to ensure the fastest connectivity possible through its standard RJ-45 data port.

POE - Specifications & Resources

Physical
Length

93.00 mm (3.66 in)

Height

74.00 mm (2.91 in)

Depth

32.80 mm (1.29 in)

Weight

200.00 g (0.44 lbs)

Power
Nominal supply voltage

12 V or 24 V dc

Operating voltage range

10 V to 36 V dc

PoE power output
  • Class 1: 4 W
  • Class 2: 7 W
  • Class 3: 15.4 W
  • Maximum power output: 15.4 W

Ensure that the maximum power output is not exceeded. For more information, refer to: Power over Ethernet (PoE).

Current draw

2.34 A @ 10 V dc

0.65 A @ 36 V dc

Power consumption

23.4 W @ 10 V dc

23.4 W @ 36 V dc

Power consumption

23.4 W @ 10 V dc

23.4 W @ 36 V dc

PoE nominal output voltage range

44 V to 57 V de (based on the IEEE 802.3af standard)

Network
Network connection ports
  • 1 x RJ45 data input port (1000 / 5000 Mbits/s)
  • 1 x PoE RJ45 combined power and data output port ( 1 000 / 5000 M bits/s). (Supports PoE classes O to 3, with 15.4 W maximum power consumption, based on the IEEE 802.3afstandard).
IEEE Standard

Conforms to IEEE 802.3af

Environmental
Operating temperature

-40 °C (-40 °F) to +40 °C (104 °F)

Storage temperature

-40 °C (-40 °F) to +85 °C (185 °F)

Relative humidity

up to 90%

Conformance
Standards
  • EN 60945:2002 (Europe, Australia, New Zealand)
  • FCC Class B
  • IEEE 802.3af
