The FLIR (Marine Thermal Monitoring System) MTMS camera for marine monitoring watches critical equipment on your vessel including engines, exhaust manifolds and shaft bearings to spot problems before you're stranded on the water.

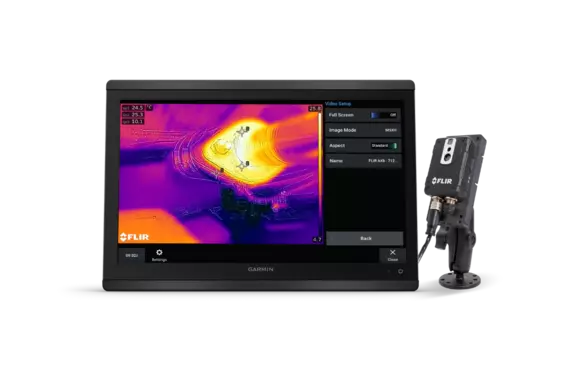

The FLIR MTMS thermal monitoring system watches critical equipment on your vessel, including engines, exhaust manifolds, and shaft bearings, to spot problems before you're stranded on the water. The MTMS integrates with chartplotter displays to send audible and visual alerts when the temperature of machine parts rise above preset thresholds.
FLIR’s MSX® technology, which blends imagery from visible and thermal cameras, ensures that the MTMS's imagery is easier to understand than thermal imagery alone.
All FLIR MTMS Systems come with a cooling bracket and DC PoE Injector, as well as a RayNet to RJ45 Cable and a M12X to RJ45 Cable. Choose either the One-Ball Joint Mounting Bracket (R70375) or Two-Ball Joint Mounting Bracket (261-2319-00) to complete your installation.
$1,359.99 (USD)
Integrates directly with Garmin and Raymarine Chartplotter displays or PC
Set audible and visible alerts to elevated temperature events
MSX technology allows for simultaneous visual and thermal environmental monitoring
Imaging & Optical Data | |
---|---|
IR resolution | 80 × 60 pixels |
Thermal sensitivity/NETD | < 0.10°C @ +30°C (+86°F) / 100 mK |
Field of view (FOV) | 48° × 37° |
Focus | Fixed |
Detector Data | |
---|---|
Detector type | Focal Plane Array (FPA), uncooled microbolometer |
Spectral range | 7.5–13 μm |
Visual Camera | |
---|---|
Built-in digital camera | 640 × 480 |
Digital camera, FOV | Adapts to the IR lens |
Sensitivity | Minimum 10 Lux without illuminator |
Measurement | |
---|---|
Object temperature range | –10°C to +150°C (14°F to 302°F) |
Accuracy | ±2°C (±3.6°F) or ±2% of reading (+10 to +100C@+10 to +35 amb) |
Measurement Analysis | |
---|---|
Spotmeter | 6 |
Area | 6 boxes with max./min./average |
Automatic hot/cold detection | Max/Min temp. value and position shown within box |
Measurement presets | Yes |
Atmospheric transmission correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
Optics transmission correction | Automatic, based on signals from internal sensors |
Emissivity correction | Variable from 0.01 to 1.0 |
Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
External optics/windows correction | Automatic, based on input of optics/window transmission and temperature |
Measurement corrections | Global object parameters |
Alarm | |
---|---|
Alarm functions | Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set |
Alarm output | Digital Out, store image, file sending (ftp), email (SMTP), notification |
Set-Up | |
---|---|
Color palettes | Color palettes (BW, BW inv, Iron, Rain) |
Set-up commands | Date/time, Temperature °C/°F |
Web interface | Yes |
Storage of Images | |
---|---|
Storage media | Built-in memory for image storage |
Image storage mode | IR, visual, MSX |
File formats | JPEG+FFF |
Ethernet | |
---|---|
Ethernet | Control, result and image |
Ethernet - Type | 100 Mbps |
Ethernet - Standard | IEEE 802.3 |
Ethernet - Connector Type | M12 8-pin X-coded |
Ethernet - Video Streaming | Yes |
Ethernet - Power | Power over Ethernet, PoE IEEE 802.3af class 0 |
Ethernet - Protocols | Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) |
Marine Electronics Interface | |
---|---|
Chartplotter Displays | Network compatible with networked PCs and Raymarine and Garmin Chartplotter displays. |
Image Streaming | |
---|---|
Image streaming formats | Motion JPEG, MPEG, H.264 |
Image streaming resolution | 640 × 480 |
Image modes | Thermal, Visual, MSX (IR-image with enhanced detail presentation) |
Automatic image adjustment | Continuous |
Power System (POE Injector) | |
---|---|
External power operation | 12/24VDC, 2 W continuously/ 3.1 W absolute max |
External power connector | Screw connection (12V/0V/Chassis) |
Voltage Allowed range | 9–36VDC |
Environmental | |
---|---|
Operating temp. range | 0°C to +50°C (32°F to +122°F) |
Storage temp. range | –40°C to +70°C (–40°F to +158°F) IEC 68-2-1 and IEC 68-2-2 |
Humidity (operating and storage) | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles |
EMC | EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission) EN 60945: 2002 |
Encapsulation | IP67 (IEC 60529) |
Bump | 25 g (IEC 60068-2-29) |
Vibration | 2 g (IEC 60068-2-6) EN 60945:2002 |
Ignition Protection | EN 28845:1993 |
Physical | |
---|---|
Camera size (L × W × H) | 54 × 25 × 79 mm (2.1 x 1 x 3.1 in.) w/o connectors 54 × 25 × 95 mm (2.1 x 1 x 3.7 in.) w/ connectors |
Manuals | |
---|---|
MTMS - Quick Start Guide |
