The FLIR Ocean Scout Pro II is a long range thermal night vision monocular, designed for marine law enforcement applications.
Ocean Scout Pro II gives marine law enforcement and first responder crews a fast, reliable way to maintain situational awareness during night operations and low‑visibility conditions. Use it to support patrols, identify navigation aids, and rapidly locate persons in the water during active response situations. Advanced FLIR thermal imaging helps crews detect people, vessels, and hazards when visibility is compromised by darkness, weather, smoke, or glare.
Designed for high‑stress operations, Ocean Scout Pro II features a streamlined interface and ergonomic controls that allow officers to maintain continuous visual contact with targets without navigating complex menus. Advanced image processing enhances contrast and target visibility, helping ensure no person, vessel, or navigational hazard is overlooked during time‑critical enforcement and rescue operations.

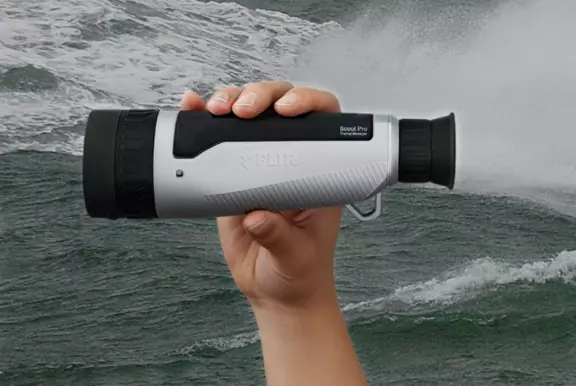

We developed Ocean Scout Pro II in collaboration with public safety professionals. It is built to withstand harsh marine environments, deploy quickly, and meet the operational demands of marine law enforcement, coast guard, and search and rescue teams. An intuitive, one‑finger control scheme and streamlined interface allow operators to stay focused on critical targets during active response. With up to six hours of battery life, Ocean Scout Pro II is ready when conditions demand it.
| General | |
|---|---|

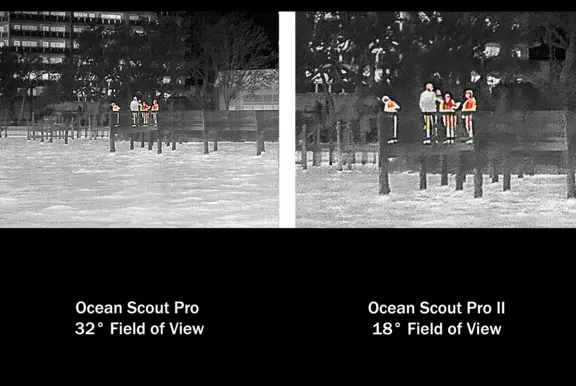

| Field of View (FOV) | 18° |
| Focal length | 35 mm |
| F-number | f/ 1.0 |
| Focus | Manual focus |
| Human detection range | 1000 m (1100 yards) |
| Minimum focus distance | 2 m (6 ft 7 in) |
| Detector frame rate | 30 Hz |
| Display frame rate | 60 Hz |
| Spectral range | 7.5 μm - 13.5 μm |
| Pixel pitch | 17 μm |
| Thermal sensitivity, NETD | <38 mK @ 30°C (86°F) |
| Resolution | 640 ×480, vox microbolometer |
| Image processing | FLIR proprietary Digital Detail Enhancement™ |
| Color (housing) | Silver/Black |
| Drop rating | 2 m (6 ft 7 in) |
| IP rating | IP67 |
| User Interface | |
|---|---|
| Zoom | 2x, 4x, 6x, 8x |

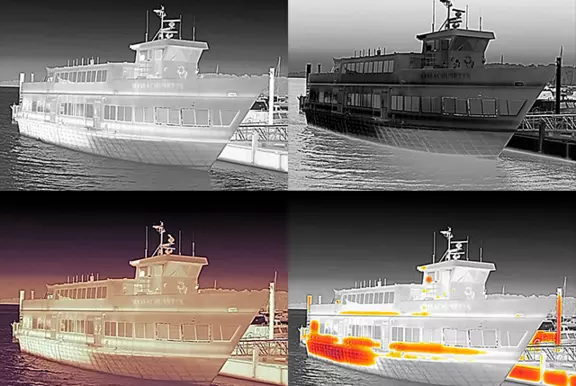

| Modes | White Hot, Black Hot, Sepia |
| Disable radio and Wi-Fi | Physical On/Off switch |
| Image Presentation | |
|---|---|
| Built-in display | XGA 1024 × 768 |
| Video | XGA 1024 × 768 |
| Power | |
|---|---|
| Battery life | Up to 6 hours |
| Battery type | Internal Li-Ion cell |
| Charging time | 2 h at 80% |
| Physical | |
|---|---|
| Size (L x W x H) | 21.2 × 6.4 × 6.4 cm (8.33 × 2.51 × 2.51 in) |
| Weight (incl. battery) | 660 g (1.455 lbs) |
| Tripod mounting | UNC ¼”-20 |
| Image Storage | |
|---|---|
| Media gallery | Scout Pro App (iOS only) |
| Storage media | Embedded flash |
| Image storage capacity | >1000 |
| Image storage mode | IR |
| File formats | Standard JPEG |
| Video recording | Yes |
| Non-radiometric IR video recording | MPEG4 AVC (ITU-T H.264) |
| Storage capacity | 16 GB |
| Video streaming | Yes |
| Non-radiometric IR video streaming | Wi-Fi/RTSP (MPEG4 AVC (ITU-T H.264)) |
| USB streaming | UVC (YUV422 no overlay) |
| Wireless Connectivity | |
|---|---|
| Bluetooth | BLE |
| Streaming | Wi-Fi |

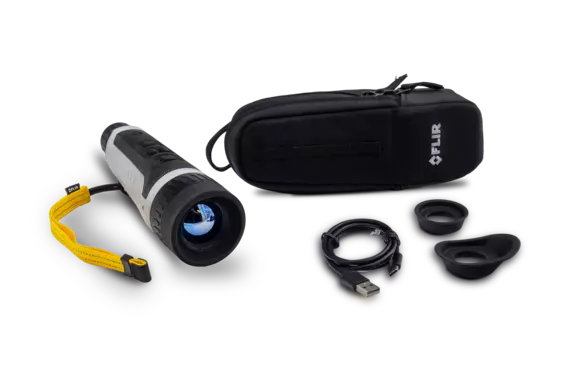

Every Ocean Scout Pro II camera system includes:
| 1 | Ocean Scout Pro II Thermal Monocular |
| 2 | Tactical storage pouch with MOLLE webbing |
| 3 | Marine yellow nylon wrist lanyard |
| 4 | USB-C to USB-A data and charging cable |
| 5 | Round rubber eyecup |
| 6 | Oval rubber eyecup |
| 7 | Quick start guide (not pictured) |
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
