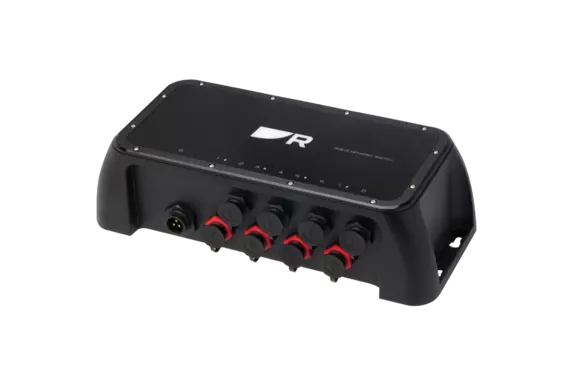

RNS-8

Name: RNS-8
SKU: A80732
Price: 1099.99 USD
Availability: InStoreOnly

8 port Gigabit RayNet network switch with 4 dedicated power-over-ethernet (POE) ports.

$1,099.99 (USD)

Model: RNS-8

SKU: A80732

Sales Request

Easy marine camera integration

The RNS-8 network switch is a premium network switch. Use the RNS-8 to integrate chartplotter displays with radars, sonar modules, and FLIR Marine thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. The RNS-8 is simple to install and requires no complicated setup.

RNS-8 - Specifications & Resources

Physical
Length	287.63 mm (11.32 in)
Height	125.5 mm (4.94 in)
Depth	78 mm (3.07 in)
Port separation distance	17.38 mm (0.68 in)
Weight	960.5 g (2.12 lbs)

Power
Nominal supply voltage	12 V or 24 V dc
Operating voltage range	9 V to 31.2 V dc
PoE operating voltage range	10.8 V to 31.2 V dc
Power consumption	160 W (Maximum) @ 12 V dc 150 W (Maximum) @ 24 V dc
Current	13.3 A (Maximum) @ 12 V dc 6.25 A (Maximum) @ 24 V dc
Inline fuse rating	15 A @ 12 V dc 8 A @ 24 V dc
Thermal breaker rating	20 A @ 12 V dc 10 A @ 24 V dc

Network

Network connection ports

4 x RayNet connection ports (10/100/1000 Mbits/s)

4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE Classes 0 to 4, with 30 W maximum power available for each port.

Note:

You can mix a combination of PoE and non-PoE devices simultaneously, for a total of 8 devices (maximum PoE devices = 4; maximum non-PoE devices = 8).
In order to sufficiently power PoE devices, the network switch’s power supply must exceed 10.8 V dc.

IEEE Standard

Conforms to IEEE 802.3at

Environmental
Operating temperature	–25 °C (–13 °F) to +55 °C (131 °F)
Non-operating temperature	–30 °C (–22 °F) to +70 °C (158 °F)
Relative humidity	up to 93% @ 40 °C (104 °F)
Waterproof rating	IPx6 & IPx7
