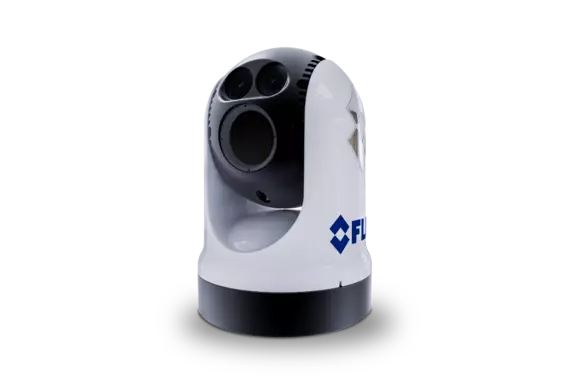

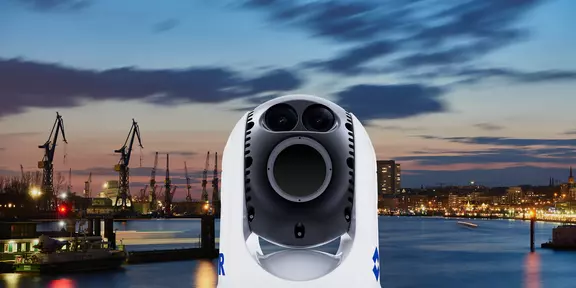

FLIR M500

High resolution marine thermal camera with pan and tilt, 2-axis gyro stabilization, ultra long-range zoom, ultra low-light camera, and LED spotlight.

Product Options

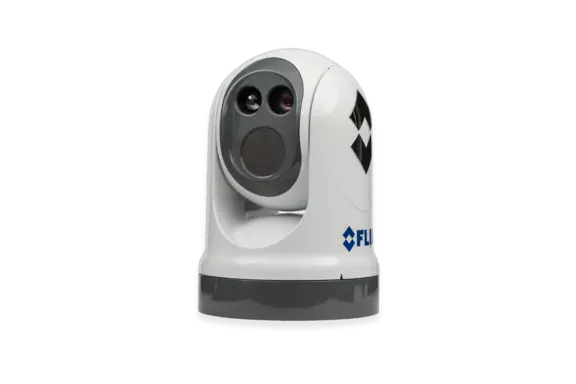

FLIR M500
Maximum-Performance Multi-Sensor Camera

Maximum-Performance Multi-Sensor Camera

The M500 stands as the pinnacle of commercially available FLIR marine thermal cameras for maritime applications. Its mid-wave detector offers double the image sensitivity compared to long-wave infrared cameras, enhancing range performance by 35%. With superior performance in fog and other atmospheric conditions, cooled mid-wave sensors surpass long-wave thermal cameras. Additionally, the M500's internal gyro stabilization ensures a stable view even in turbulent seas.

Sales Request
Gyro stabilization icon

2-Axis Stabilization

Navigate with a steady view in rough seas. Vertical stabilization compensates for vessel pitch and horizontal stabilization maintains the M500's field of view on a selected bearing.

cooled long range thermal icon

Long Range Thermal

A cryogenically cooled mid-wave thermal sensor delivers extra long range target detection.

Dual payload icon

2 Camera Payloads

High Resolution Thermal + an Ultra Low Light Visible Camera.

M500 Thermal Detection Ranges

Actual range may vary depending on camera setup, environmental conditions and user experience.

FLIR M500 detection range image

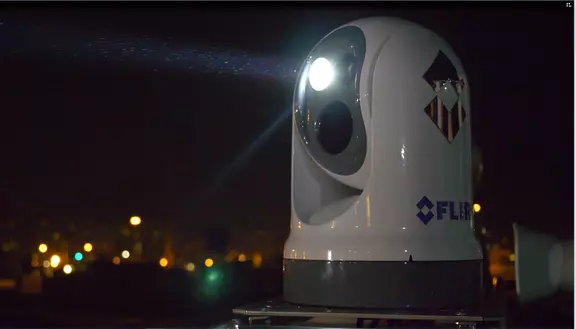

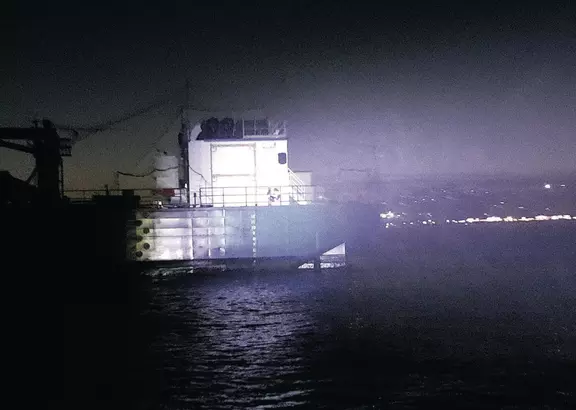

Positive Target Identification

M500 features a tight LED spotlight for identifying targets or inspecting incident scenes.

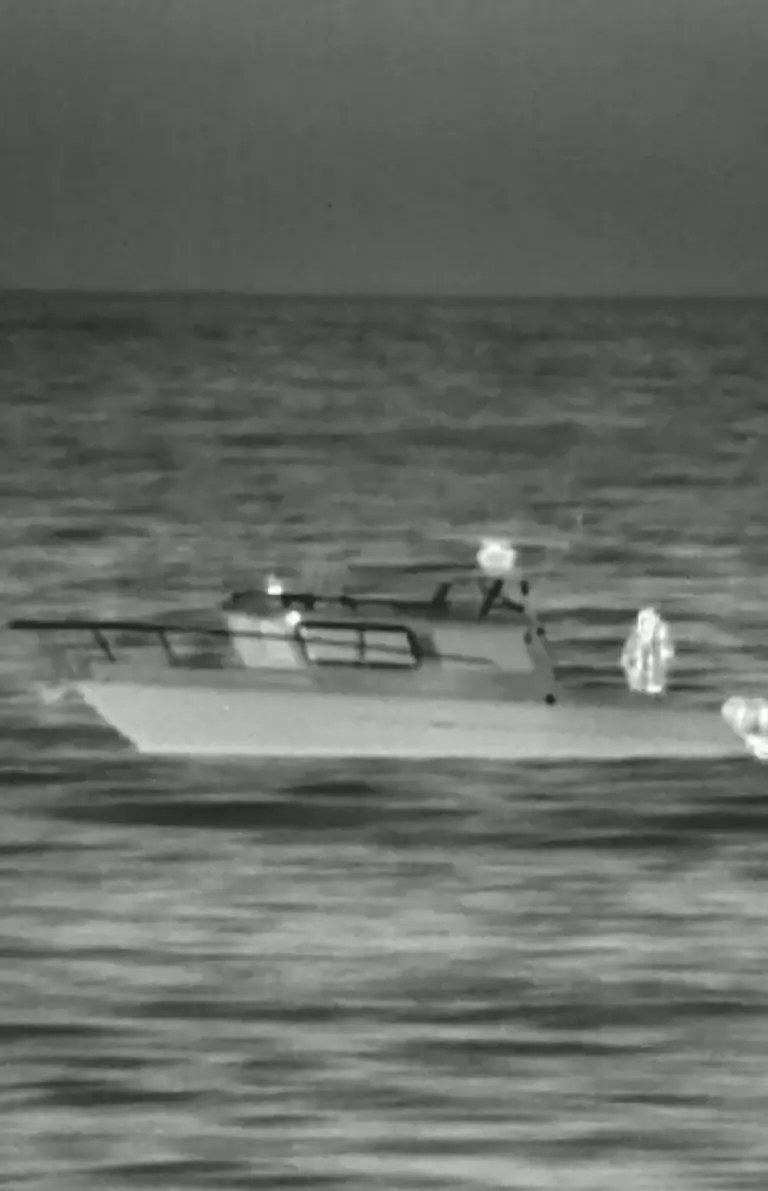

Premium Long Range Thermal Vision

Premium Long Range Thermal Vision

High-sensitivity mid-wave detector delivers superior image quality and enables long-range object recognition, while the M500's video tracking feature allows automatic following of a selected target using either thermal or visible cameras. Additionally, the M500 includes a HD color camera with 30x optical zoom and a low-light camera with 12x electronic zoom, ensuring detailed imaging in various lighting conditions.

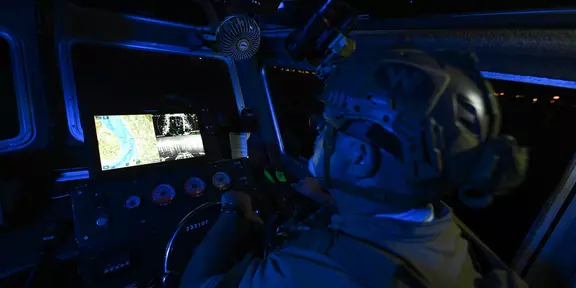

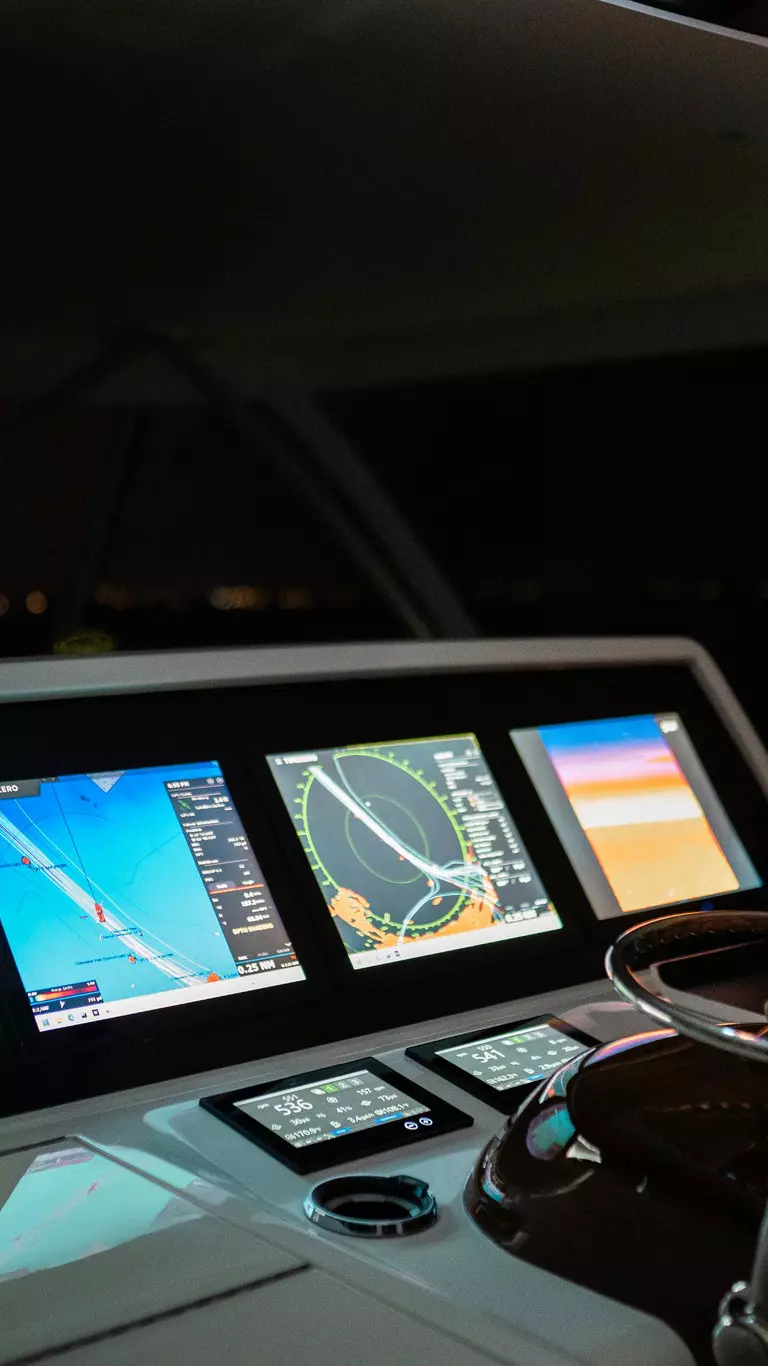

Chartplotter Compatible

FLIR M-Series cameras are designed to integrate seamlessly with chartplotters and multi-function display from Furuno, Garmin, Raymarine and Simrad. View the thermal image on your chartplotter display and control the camera's pan and tilt with your chartplotter's touchscreen.

M500 - Specifications & Resources

Thermal Camera
Field of View

Optical 28° x 21° WFOV to 2° x 1.5° NFOV

Video Refresh Rate

25 Hz (PAL) / 30 Hz (NTSC)

Focal Length

19mm (Wide) to 275mm (Narrow)

Optical Zoom

1x to 14x (continuous)

Digital Zoom

4x Continuous

Detector Type

Cooled MWIR InSb 640x512 Focal Plane Array

Visible Camera
Detector Type

1/2.8” CMOS

Lines of Resolution

Up to 1920 x 1080 @ 30fps

Minimum Illumination

Low Light Setting ON: 0.006 lux / Low Light Setting OFF: 0.1 lux

Optical Zoom

30x

Digital Zoom

12x

Focal Length

129 mm to 4.3 mm

Field of View

63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV

Spotlight
Type, Lumens, Beamº

LED, 580 Lumens, 5° Divergence Angle

System
Gyro Stabilized

Yes

Video Tracking

Yes

Pan/Tilt Adjustment Range

360° Continuous Pan,± 90° Tilt

Analog Video Output

NTSC or PAL, 30 Hz or <9 Hz

Analog Video Connector Types

F-type BNC with BNC-to-RCA adapter included for video out

Network Video Output

Four, Independent H.264 Network Video Streams

HD-SDI Lossless Video Output

Yes

Power Requirements

12-24V DC

Power Consumption

250 W (max w/heaters)

Environmental
Operating Temperature Range

-13°F to +131°F (-25°C to +55°C)

Storage Temperature Range

-56° F to + 176°F (-50°C to +80°C)

Automatic Window Defrost

Standard at Power-Up

Sand/Dust Ingress

Mil-Std-810E

Water Ingress

IPX6

Shock

15 g vertical, 9 g horizontal

Vibration

IEC 60945; MIL-STD-810E

Lightning Protection

Standard

Salt Mist

IEC60945

Wind

100 knot (115.2 mph)

EMI

IEC 60945

Physical
Weight

32 lb (14.5 kg)

Size

Camera: 10.8” (273mm) x 15.7” (398mm) / Camera with Top-Down Riser: 12.8” (324mm) x 18.1” (459mm)

Range
Detect a 30-foot Vessel

5.0nm (9260m)

NATO Target 2.3m x 2.3m @50%

3.5nm (6480m)

Detect Human Sized Target

2.0nm (3625m)

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
